General Overview

• Brand: MSI (Micro-Star International)
• Model Name: GeForce GTX 1660 Gaming X 6G
• GPU Architecture: NVIDIA Turing (TU116)
• Product Type: Dedicated graphics card for gaming and multimedia
• Target Use: Mid-range gaming, content creation, and general-purpose graphics acceleration

Core Specifications

• CUDA Cores: 1408
• Base Clock: 1530 MHz
• Boost Clock: Up to 1860 MHz (Gaming Mode)
• Memory Type: GDDR5
• Memory Size: 6 GB
• Memory Interface: 192-bit
• Memory Speed: 8 Gbps

Display & Output

• Maximum Digital Resolution: 7680 × 4320 (8K @ 60Hz)
• Outputs:
• 3 × DisplayPort 1.4
• 1 × HDMI 2.0b
• Multi-Monitor Support: Up to 4 displays
• HDCP Support: Yes (2.2)

Graphics Features

• DirectX Support: DirectX 12 API
• OpenGL Support: OpenGL 4.6
• NVIDIA Technologies:
• NVIDIA GPU Boost
• NVIDIA G-SYNC™ compatible
• NVIDIA Ansel (for in-game photography)
• Ray Tracing: Not supported (no RT cores)

Cooling & Design

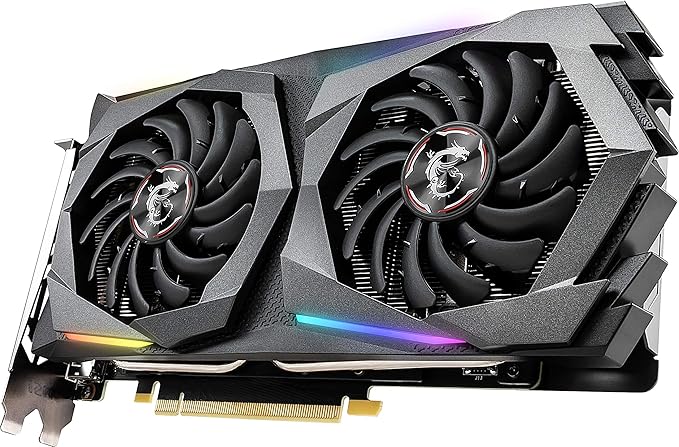

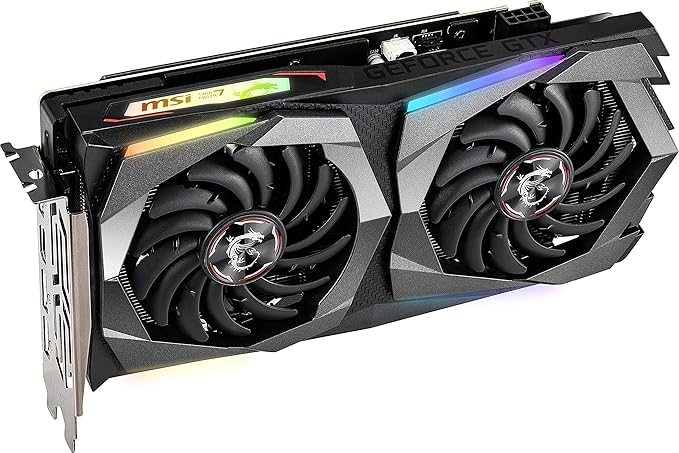

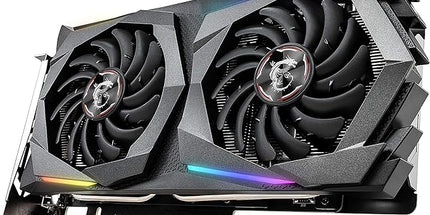

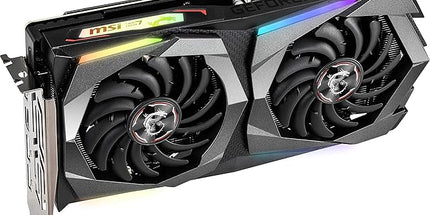

• Cooling System: MSI Twin Frozr 7 thermal design
• Dual TORX 3.0 fans
• Heatsink with copper heat pipes
• Zero Frozr technology (fans stop under low load)
• RGB Lighting: Subtle MSI logo illumination
• Form Factor: Dual-slot

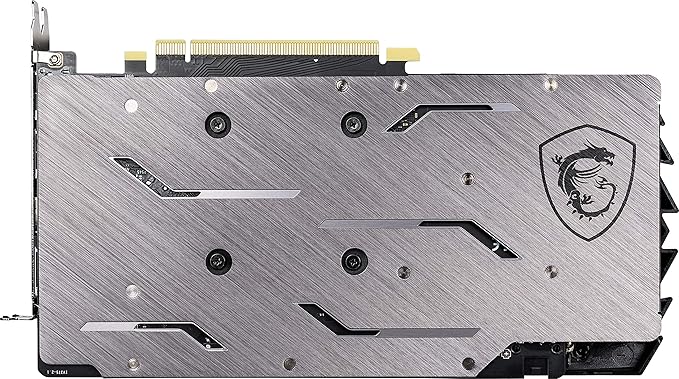

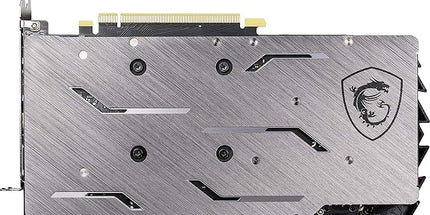

• Backplate: Included (brushed metal finish)

Power & Efficiency

• Power Consumption: ~120W TDP
• Recommended PSU: Minimum 450W
• Power Connector: 1 × 8-pin PCIe
• PCI Express Interface: PCIe 3.0 x16

Physical Specifications

• Dimensions: Approx. 247 × 127 × 46 mm
• Weight: Approx. 800g

Reliability & Software

• Software Support:
• MSI Afterburner (for overclocking and monitoring)
• MSI Dragon Center (for system tuning and LED control)
• Driver Support: NVIDIA Game Ready Drivers
• Operating System Compatibility: Windows 10/11, Linux (driver-dependent)

Packaging & Labeling (for storefront or catalog)

• Label Example: “MSI GeForce GTX 1660 Gaming X 6G – 6GB GDDR5 – Twin Frozr Cooling – HDMI/DP – PCIe 3.0”
• Inclusions: Graphics card, user manual, driver download instructions (CD may be excluded in newer batches)
