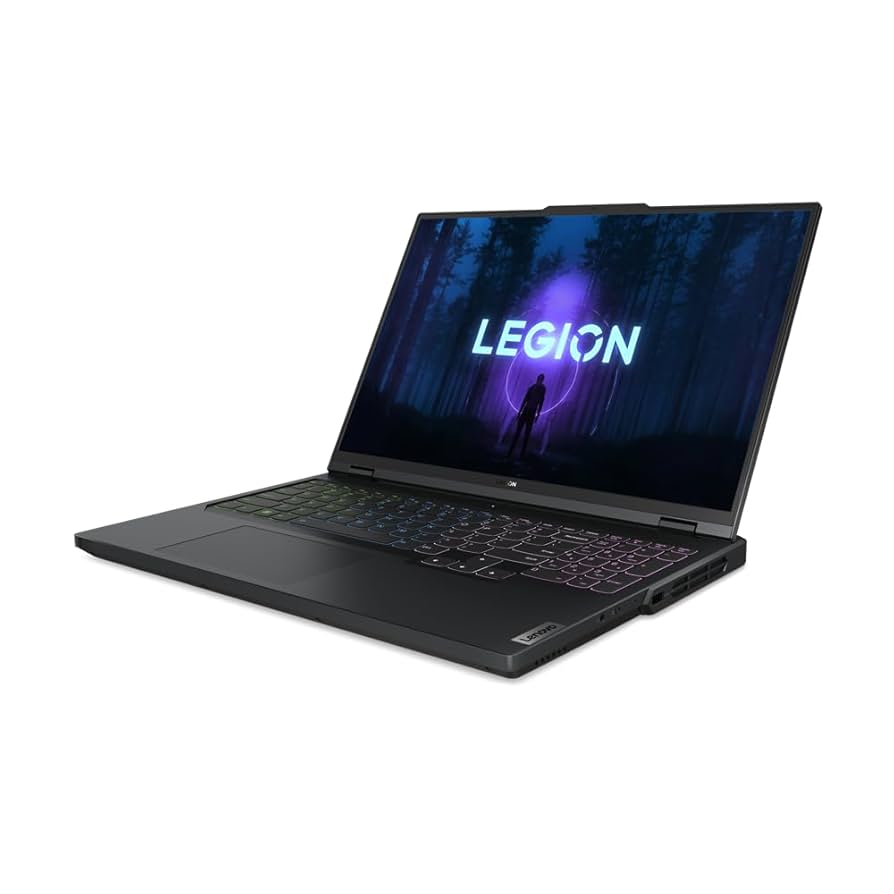

Lenovo Legion Pro 5

Processor & Performance

• CPU: Intel Core Ultra 9 275HX
• Architecture: 24 cores (8 Performance + 16 Efficient), 24 threads
• Base Clock: 2.7 GHz
• Max Turbo Frequency: Up to 5.4 GHz
• Cache: 36MB
• AI Acceleration: Intel AI Boost NPU with up to 13 TOPS

Graphics

• GPU: NVIDIA GeForce RTX 5070 Ti
• Memory: 12GB GDDR7
• Boost Clock: Up to 2347 MHz
• TGP: 115W
• Features: Ray tracing, DLSS 3.5, G-SYNC support

Memory & Storage

• RAM: 32GB DDR5-5600MHz (2×16GB SO-DIMM)
• Storage: 1TB M.2 PCIe 4.0×4 NVMe SSD
• Expansion: Supports up to 2× M.2 SSDs

Display

• Size: 16-inch OLED
• Resolution: WQXGA (2560×1600)
• Refresh Rate: 165Hz
• Brightness: 500 nits
• Color Accuracy: 100% DCI-P3
• Certifications: DisplayHDR™ True Black 1000, Dolby Vision®
• Features: G-SYNC®, 0.2ms response time, glossy finish

Battery & Power

• Battery: 4-cell, 80Wh
• Power Adapter: 300W Slim Tip (3-pin)

Keyboard & Input

• Keyboard: 24-zone RGB backlit, English layout
• Webcam: 5MP with E-shutter privacy shutter

Ports & Connectivity

• USB-A:
• 2× USB 3.2 Gen 1 (5Gbps)
• 1× USB 3.2 Gen 2 (10Gbps, Always On)
• USB-C:
• 1× USB 3.2 Gen 2 (10Gbps, PD 65–100W, DisplayPort 2.1)
• 1× Thunderbolt™ 4 / USB4® (40Gbps, DisplayPort 2.1)
• HDMI: 1× HDMI 2.1 (up to 8K)
• Audio: Combo audio jack
• Wireless: Wi-Fi 7, Bluetooth 5.3

Cooling & Build

• Cooling System: Legion Coldfront 5.0
• Dimensions: 364.38 × 268.06 × 21.69–25.95 mm
• Weight: Approx. 2.42 kg
• Color: Eclipse Black
