General Overview

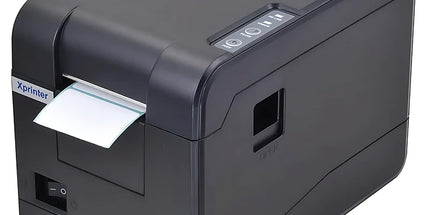

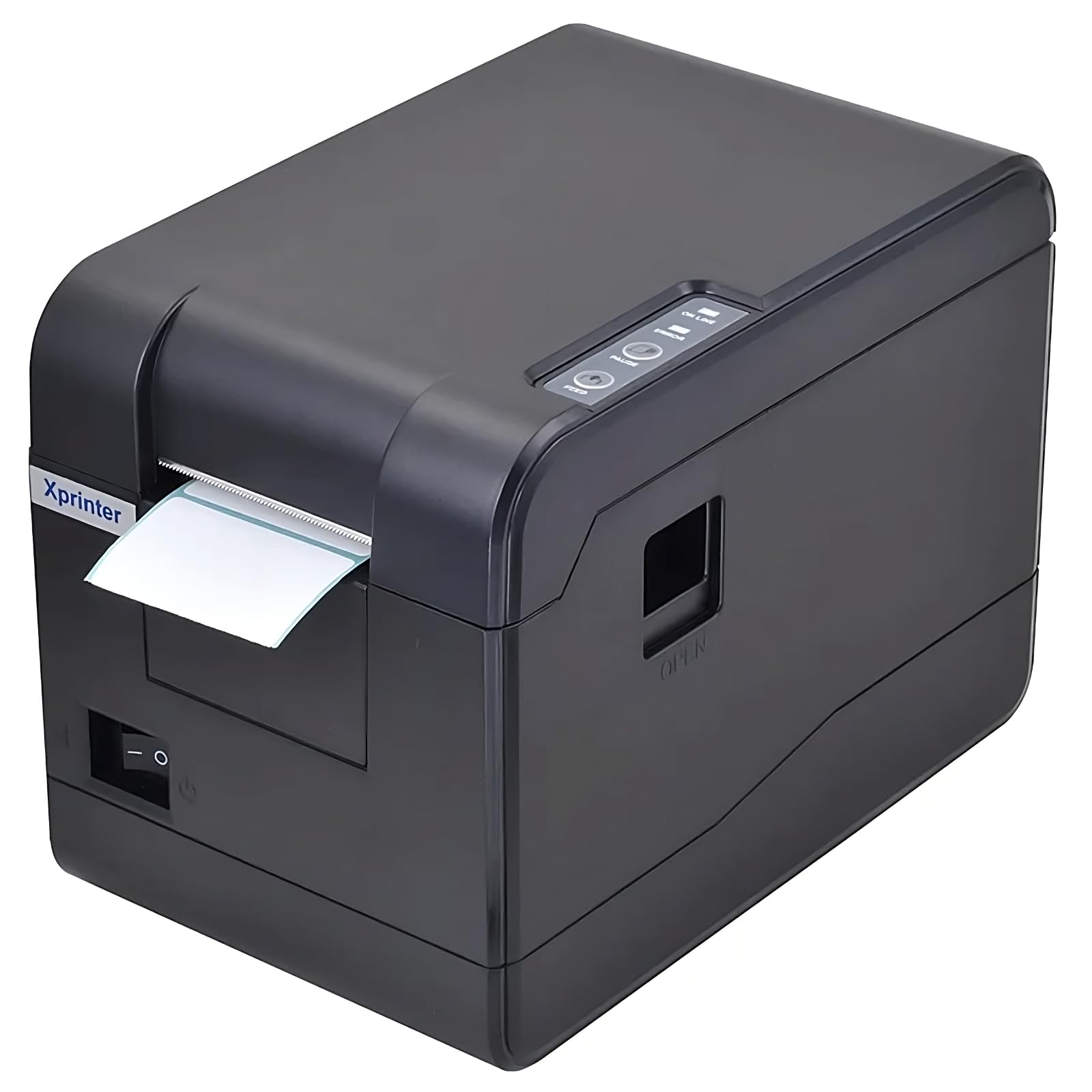

• Compact desktop thermal printer for barcode labels and receipts.
• Suitable for retail, logistics, warehousing, and small business use.
• Offers high-speed, high-resolution printing with multiple connectivity options.

Printing Features

• Print Method: Thermal barcode printing (no ribbon required).
• Resolution: 203 DPI (8 dots/mm) for sharp text and barcode clarity.
• Max Print Speed: 50.8 mm/s to 101 mm/s.
• Max Print Width: 56 mm.
• Column Capacity: 8 dots/mm.

Physical Characteristics

• Dimensions: 206 × 136 × 148 mm (Depth × Width × Height).
• Weight: Approx. 1.08 kg.
• Color: Typically black, with a compact and modern design.

Connectivity & Interface

• Interfaces:
• USB
• USB + Bluetooth
• USB + Serial (varies by model)
• Cash Drawer Port: 1 port (DC 12V / 1A output).
• Sensors: Paper End, Cover Open, Gap detection.

Media Handling

• Media Type: Thermal sticker paper, adhesive paper, thermal receipt paper.
• Paper Width: 20 mm to 60 mm.
• Paper Length: Up to 80 mm.
• Roll Diameter: Max. 100 mm.
• Media Thickness: 0.06 mm to 0.08 mm.

Fonts & Character Sets

• Font A: 12 × 24 dots (1.5 × 3.0 mm).
• Font B: 9 × 17 dots (1.1 × 2.1 mm).
• Chinese Fonts: 24 × 24 dots (3.0 × 3.0 mm).
• Character Sets: ANK, simplified/traditional Chinese.

Barcode Support

• 1D Barcodes:
• CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN8, UPC-A, UPC-E, CODABAR, POSTNET, MSI, PLESSEY, ITF14, EAN14
• 2D Barcodes:
• QR Code, PDF417, Data Matrix

Memory & Performance

• Input Buffer: 4096 KB.
• NV Flash: 4096 KB.
• Emulation: TSPL, ESC/POS compatible.

Software & Compatibility

• Drivers: Windows, Linux, Mac.
• SDKs Available: iOS, Android, Windows.
• Supported Platforms: POS systems, mobile apps, desktop environments.

Power Supply

• Input: 100–240V AC, 50/60Hz.
• Output: DC 12V / 3A.

Environmental Conditions

• Operating Temperature: 0°C to 45°C.
• Operating Humidity: 10% to 80% RH.
• Storage Temperature: -10°C to 60°C.
• Storage Humidity: 10% to 90% RH (non-condensing).

Reliability & Warranty

• Print Head Life: Up to 50 km.
