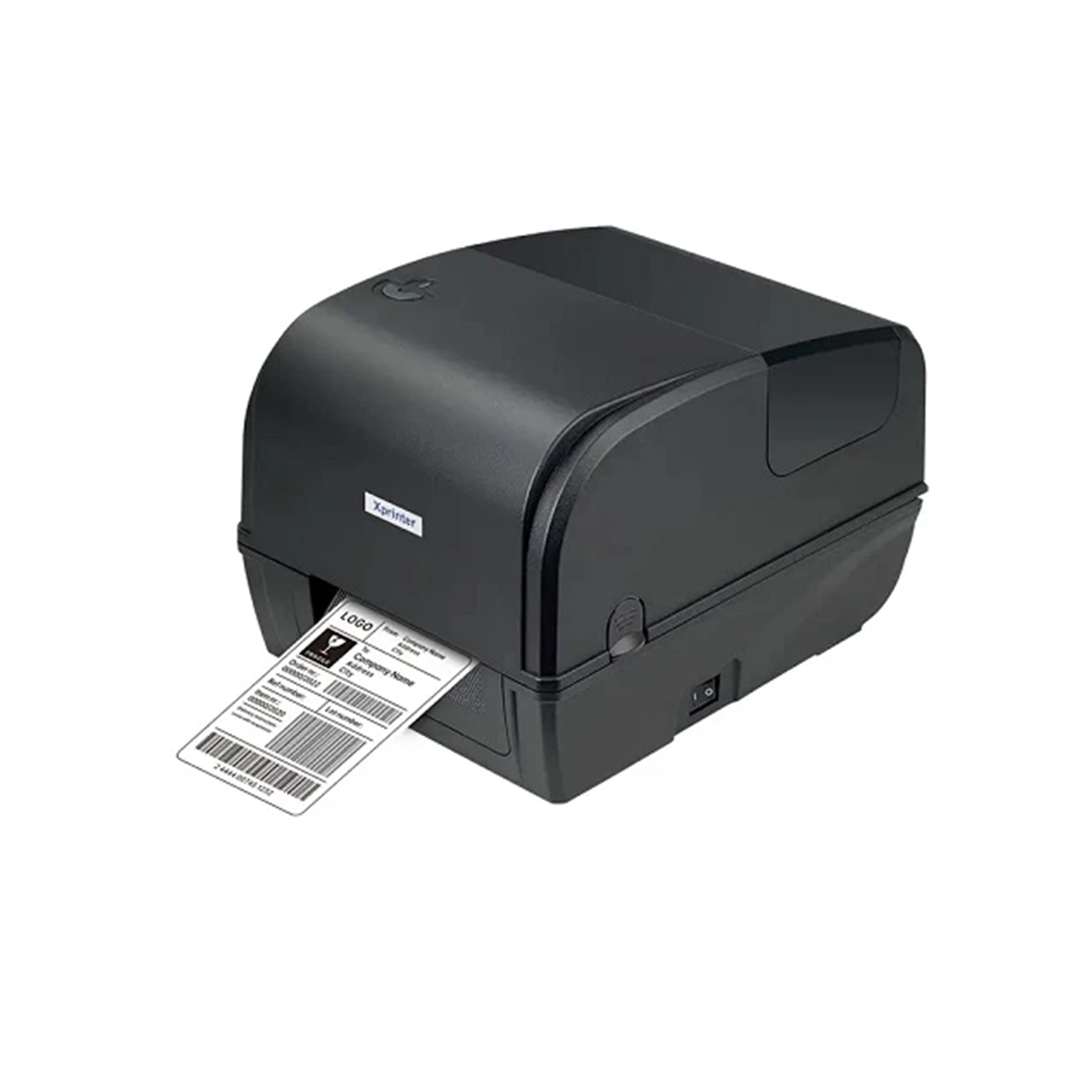

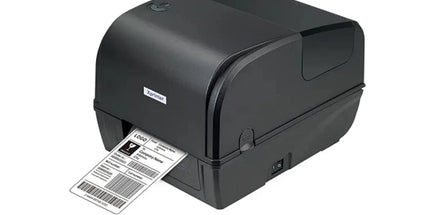

General Overview

• Model: XP-426B (also known as XP-DT426B or XP-TT426B depending on variant)
• Brand: Xprinter
• Type: Desktop Barcode Label Printer
• Design: Compact, durable, and space-efficient
• Weight: Approx. 2.55 kg
• Dimensions: 299 × 235 × 198.3 mm

Printing Technology

• Method:
• Direct Thermal (XP-DT426B) – no ribbon required
• Thermal Transfer (XP-TT426B) – uses ribbon for longer-lasting prints
• Resolution: 203 DPI for sharp barcode and text output
• Max Print Speed: Up to 127 mm/s (5″/s)
• Max Print Width: 104 mm (4.1″)
• Max Print Length: Up to 1778 mm (70″)

Media Compatibility

• Media Types: Continuous, gap, black mark, fan-fold, punched hole
• Media Width: 25.4 mm – 115 mm
• Media Thickness: 0.06 mm – 0.25 mm
• Ribbon Roll Capacity: Up to 300 m (thermal transfer variant)
• Ribbon Width: 40 mm – 110 mm

Connectivity & Integration

• Standard Interfaces: USB
• Optional Interfaces: USB + Serial, USB + Ethernet, USB + Serial + Ethernet
• Wireless Options: Bluetooth / Wi-Fi (optional)
• Processor: 32-bit RISC CPU
• Display: LED indicators (no screen)

Memory & Performance

• RAM: 8 MB SDRAM
• Flash Memory: 8 MB
• Expandable Storage: MicroSD card slot available

Barcode & Font Support

• 1D Barcodes: Code 39, Code 93, Code 128, EAN-8/13/128, UPC-A/E, Interleaved 2 of 5, MSI, POSTNET, China POST, Codabar
• 2D Barcodes: QR Code, PDF-417, DataMatrix, Maxicode, Aztec
• Font Options: 8 internal bitmap fonts; supports downloadable Windows fonts
• Rotation Support: 0°, 90°, 180°, 270°
• Emulation Languages: TSPL, ZPL, EPL, DPL

Environmental Specs

• Operating Temperature: 5°C to 40°C
• Storage Temperature: -40°C to 60°C
• Certifications: CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI

Key Features

• Dual printing modes (thermal transfer & direct thermal)
• High-speed and high-resolution output
• Wide media compatibility for diverse label types
• Multiple connectivity options including wireless
• Supports long label formats and large ribbon rolls
• Ideal for high-volume, industrial-grade label printing
